High Voltage Distribution Panel

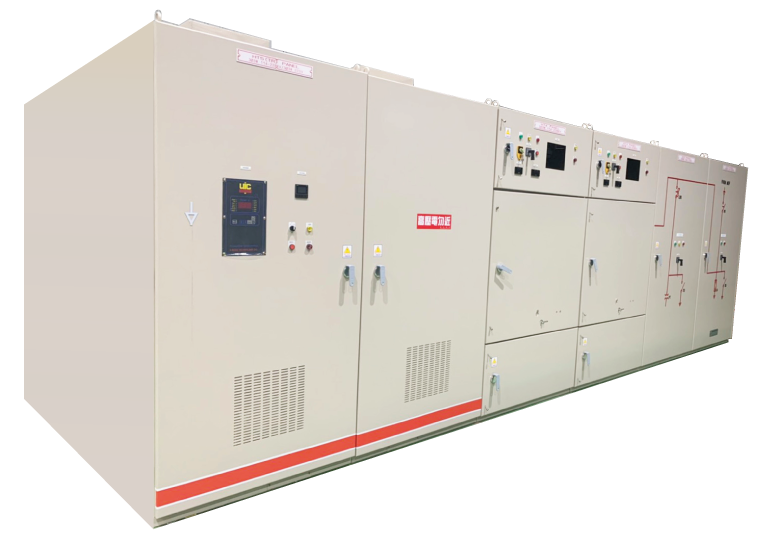

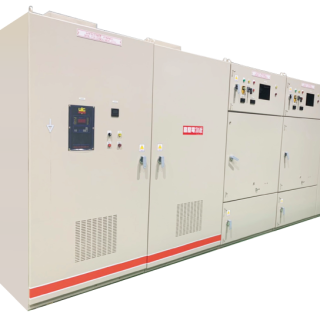

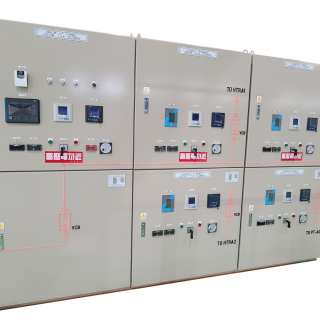

Chanhua High Voltage Distribution Panel

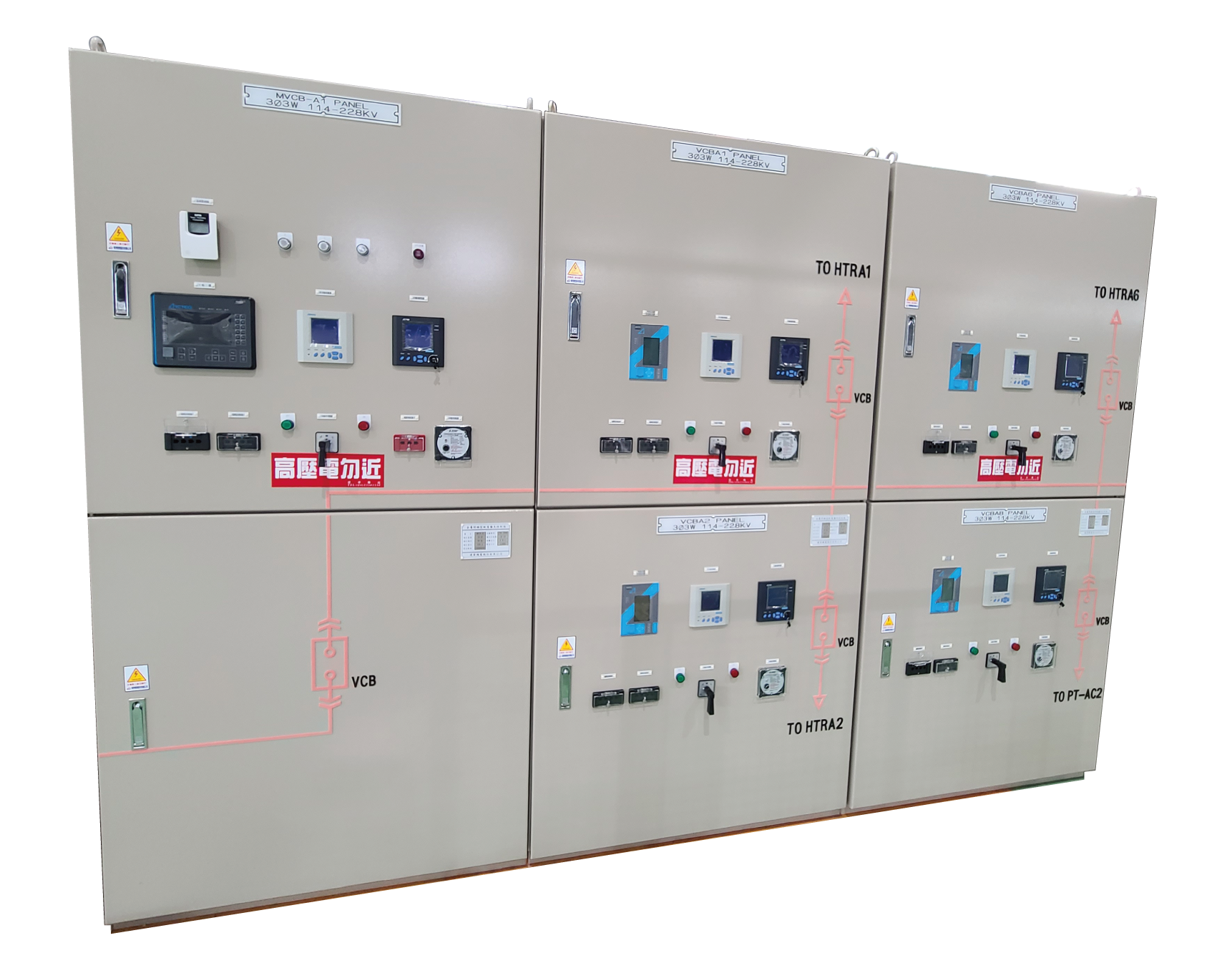

The Chanhua high voltage distribution panel is designed according to CNS3990 standards, and its manufacturing process involves meticulous planning and strict quality control. Internally, it includes superior interrupting capabilities such as circuit breakers (CB), isolation switches, power fuses, operating transformers, instrument transformers, protective relays, and meters. These components can be customized and assembled based on specific customer requirements.

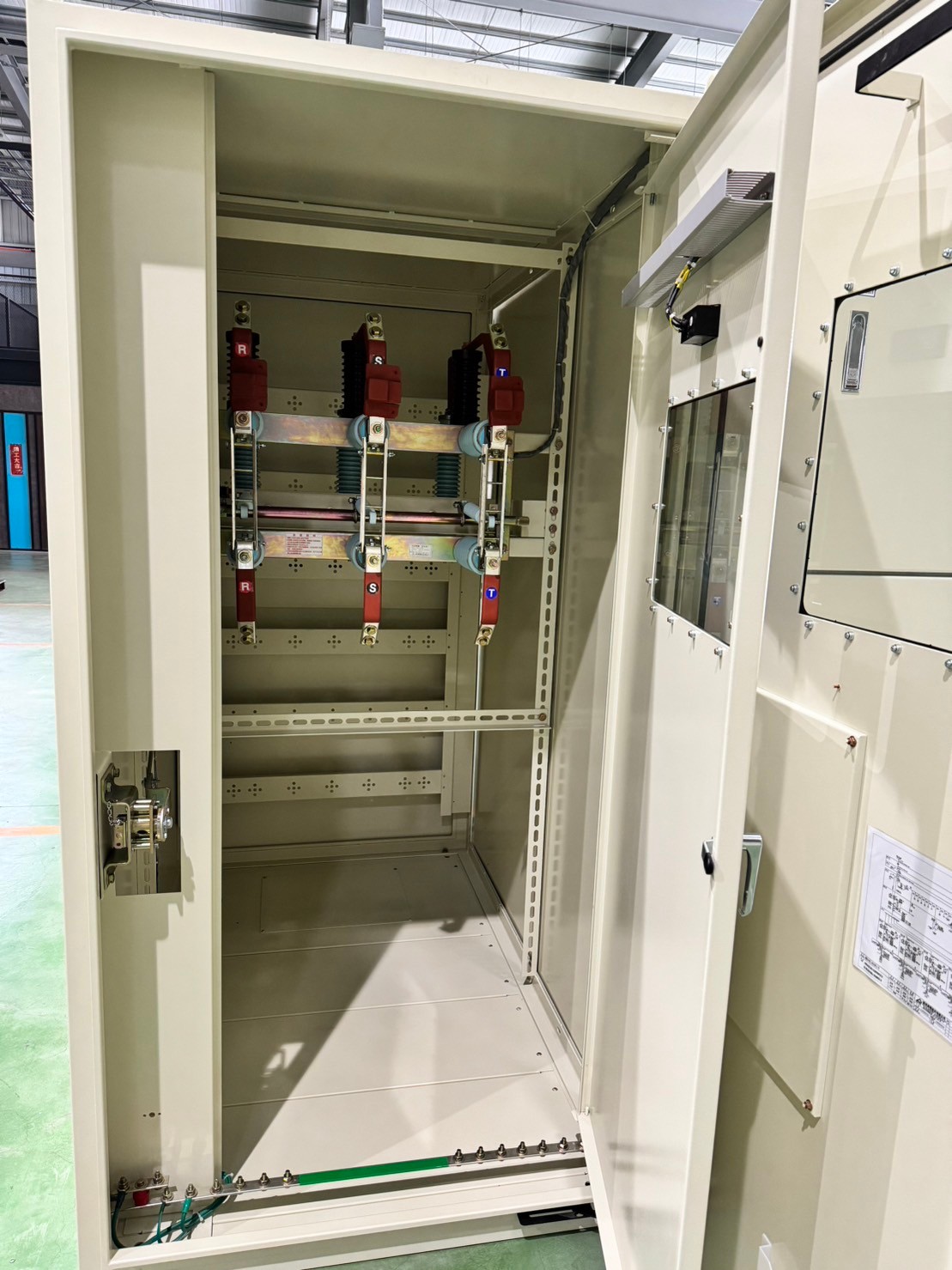

Moreover, its two-layer cabinet design features space-saving attributes, easy expansion, aesthetics, and enhanced safety.
Moreover, its two-layer cabinet design features space-saving attributes, easy expansion, aesthetics, and enhanced safety.
Chanhua Smart Distribution Panel
Safe / Energy-efficient / Fast / User-friendly
Direct control and comprehensive management of the distribution panel settings via mobile phones, tablets, and computers.
Direct control and comprehensive management of the distribution panel settings via mobile phones, tablets, and computers.
Why Choose a Smart Distribution Panel?
Real-time Capabilities
1.Provides open-standard communication protocols for upper-level SCADA systems, allowing for expandable applications.
2.Segregates electrical parameters into basic, energy-saving, and quality-related categories for clear and easy tracking.
3.Comprehensive service with built-in production history, technical manuals, and graphical resources available on demand.
4.Offers various trend charts with customizable preferences for thorough diagnostic tracking.
Cloud Connectivity
1.Enables faster connection through meaningful domain names or IP addresses directly with the distribution panel.
2.Allows convenient management and configuration via mobile phones, tablets, or computers without the need for a server host.
3.Stores data records on SD cards for easy connection downloads or application storage.
Safety
1.Three-tier account and password login for enhanced management security.
2.Upper and lower limit alarms, logic operation alarms, and audio-visual alarm monitoring to achieve proactive safety.
3.Detection of various power parameters, temperature and humidity, and AIO monitoring points for comprehensive control of the distribution panel.
Implementation and Features of Smart Distribution Panel
-

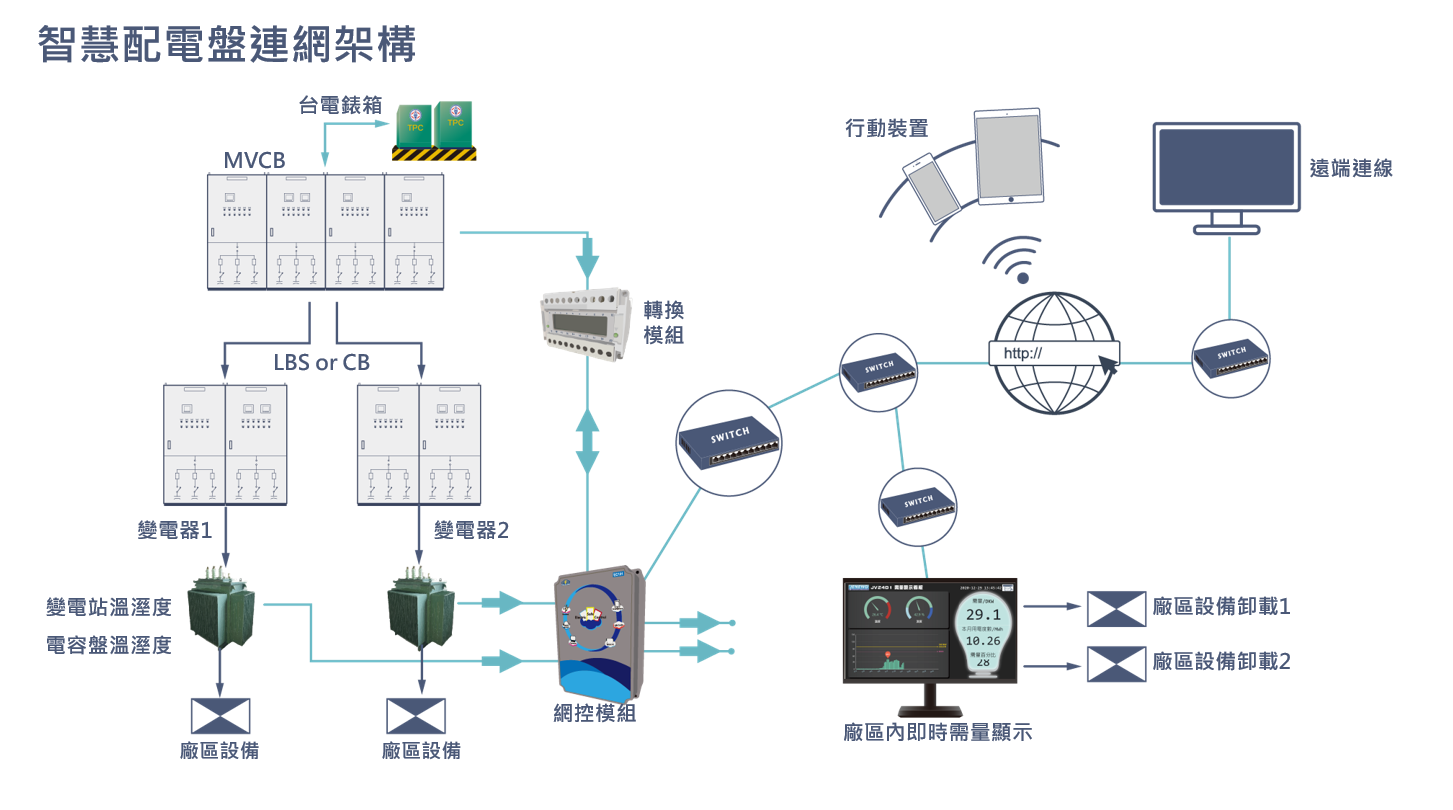

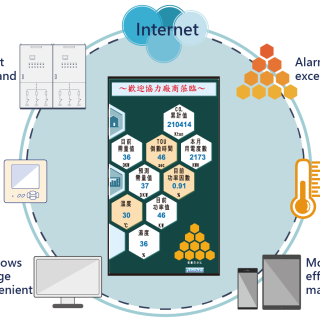

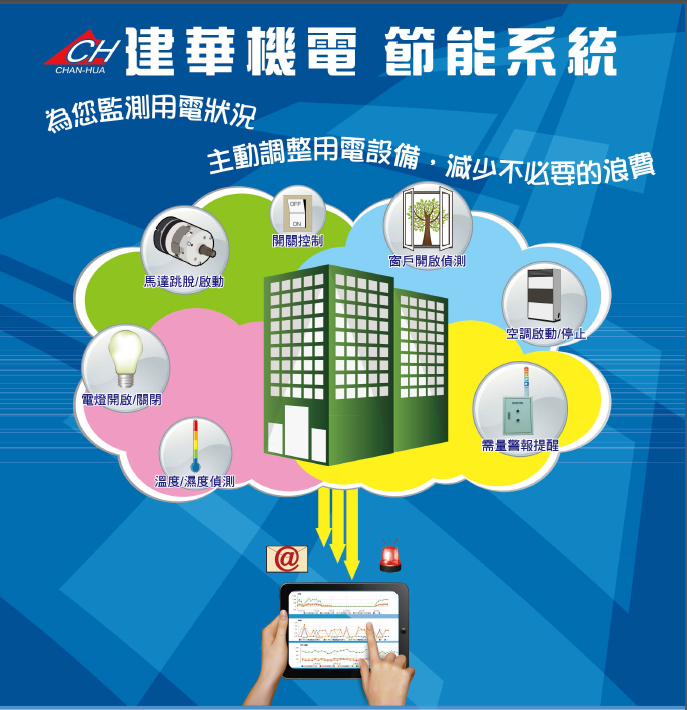

Implementation of Smart Distribution Panel Networking Architecture
Installation of relevant cloud-electricity equipment on high and low voltage distribution panels according to customer requirements. The equipment connects via the internet to individual PCs and mobile devices. -

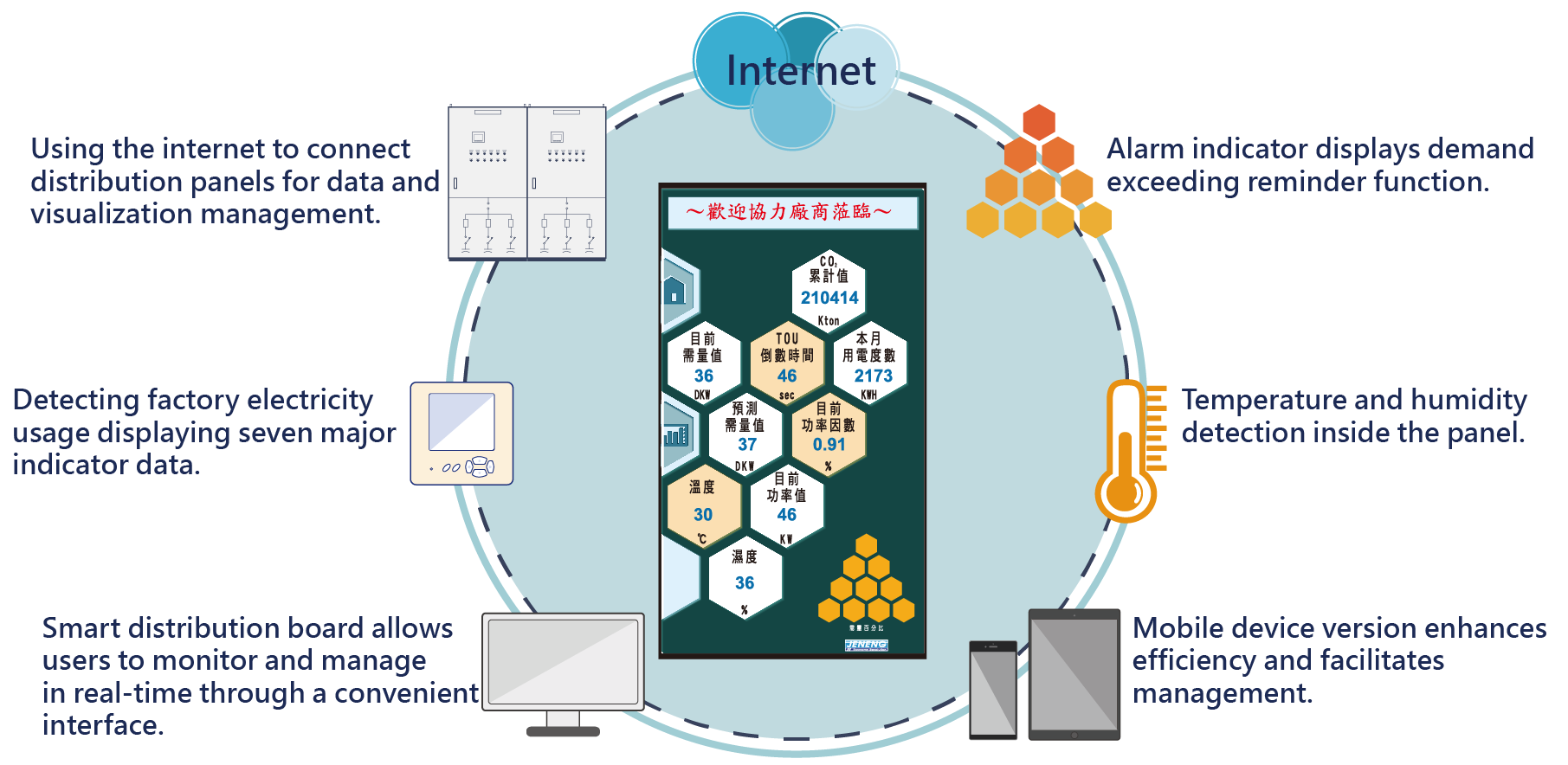

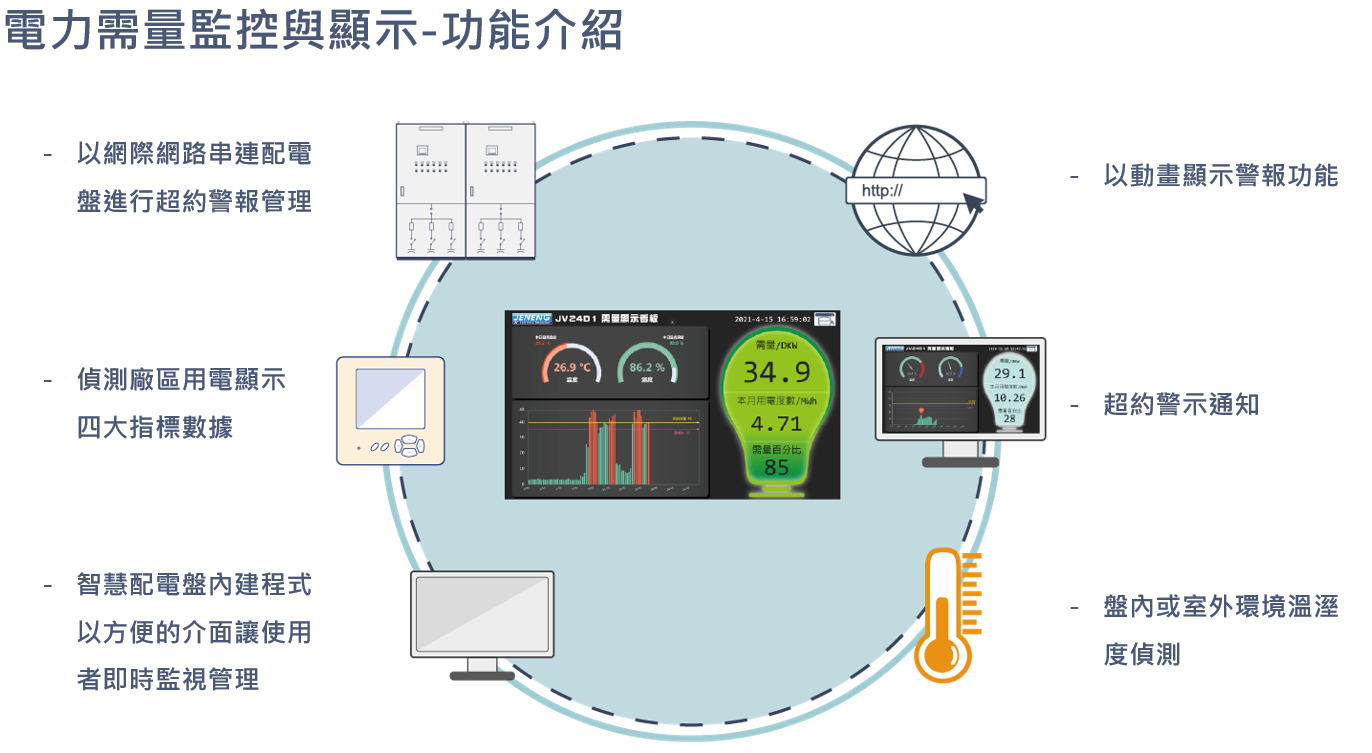

Smart Distribution Panel Features
Detection and recording of electrical parameters, alarm and control for space temperature/humidity, door opening detection, audible and visual alarm monitoring, upper and lower limit alarms, logic operation alarms, proactive safety mechanisms, etc.
Traditional Alarm Application in Distribution Panels

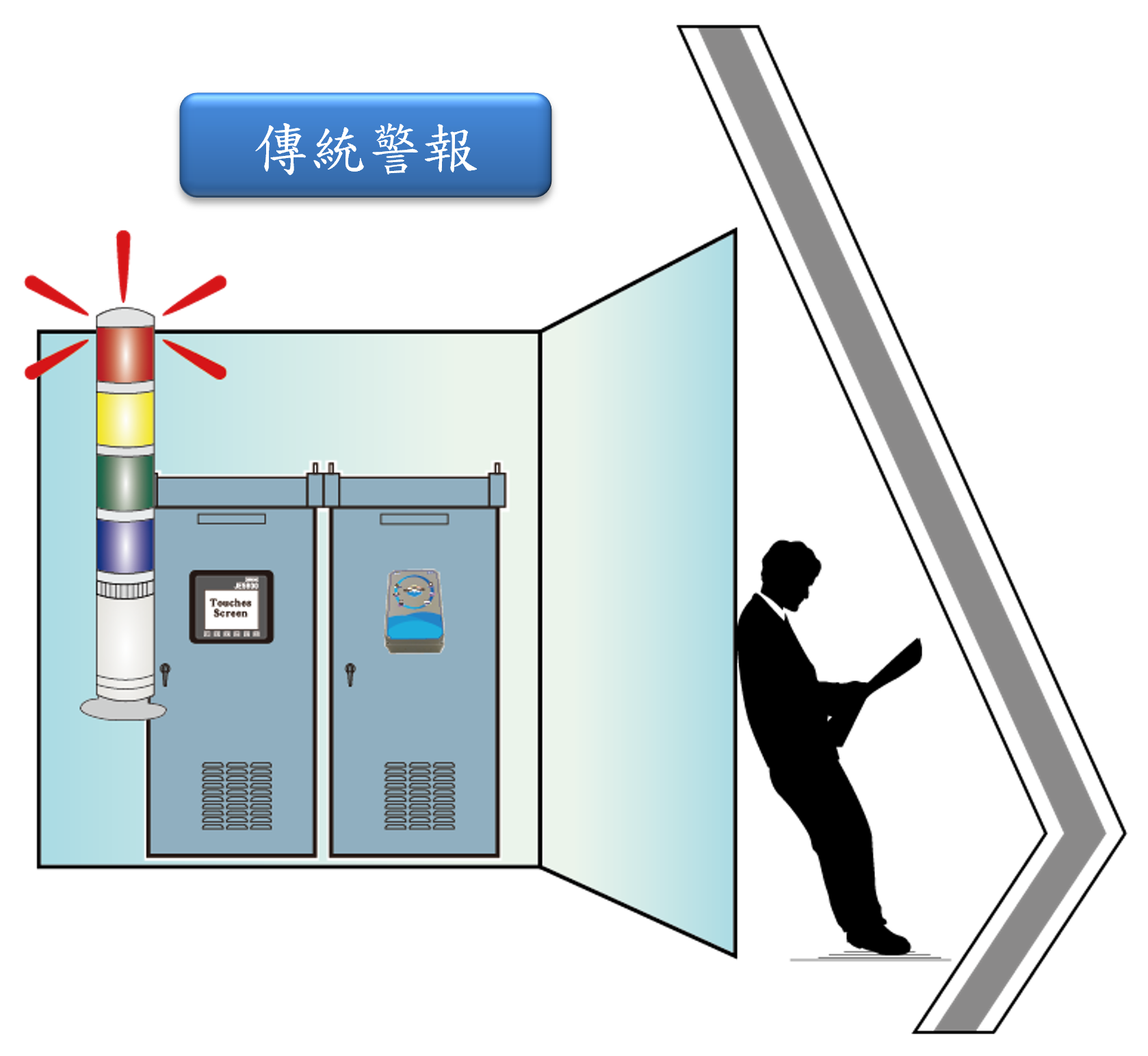

Traditional power alarms typically rely on flashing lights or buzzers at the distribution panel display, but are limited to small area coverage and cannot actively notify administrators. This often results in the need for electrical professionals to conduct inspections to detect anomalies, which can be overlooked due to a lack of manpower and specialized electrical personnel. The importance of the alarm system is usually only recognized during power outages or disasters. Currently, various industries still face these challenges and require optimization to enhance management efficiency.
Smart Distribution Panel - Active Alarm Application

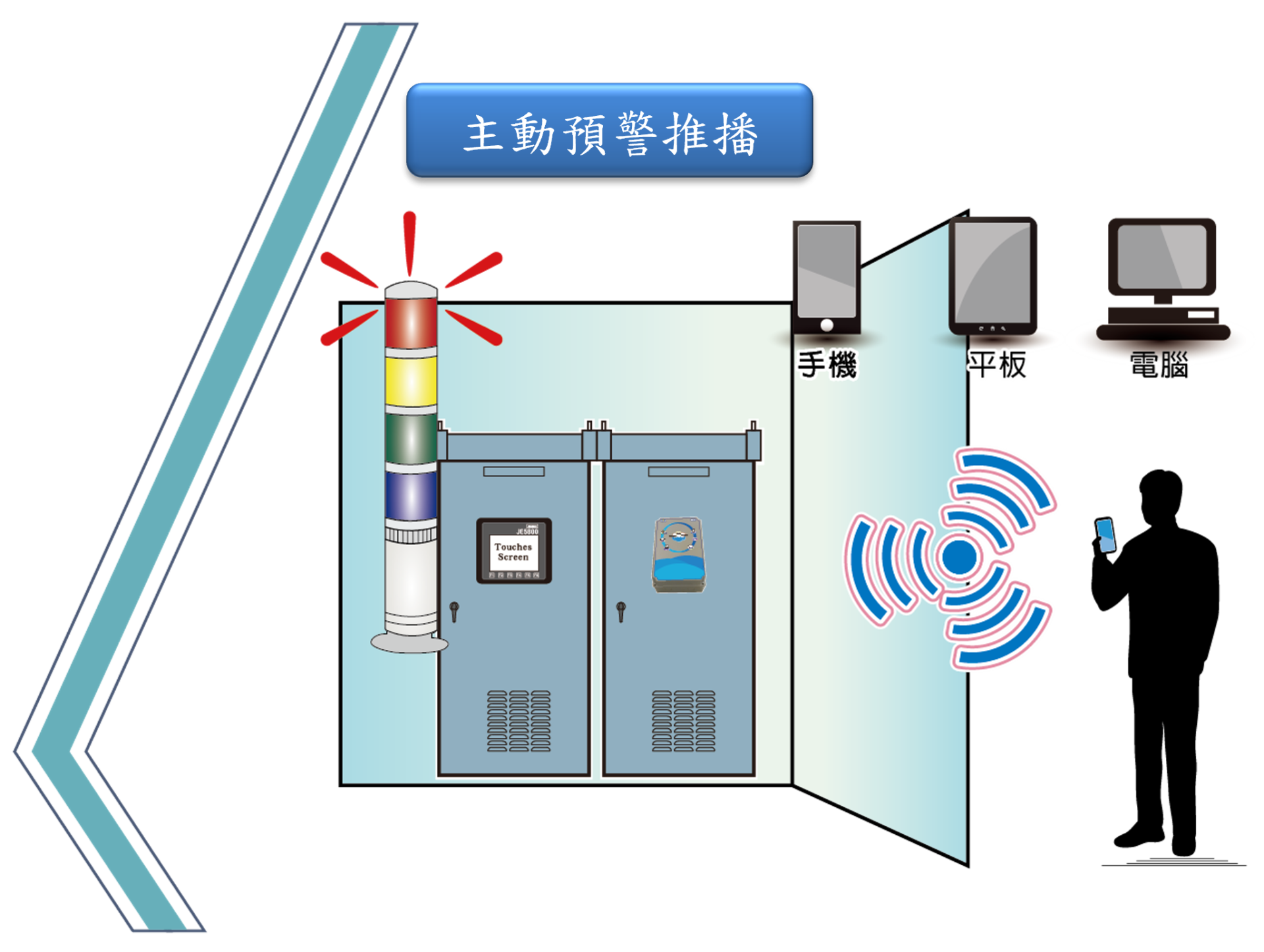

The proactive alert push management system detects abnormalities from the equipment end and instantly sends notifications through the network to administrators' mobile devices. This enables managers to quickly pinpoint issues and prevent potential disasters. Through the push management system, overlooked deficiencies can be promptly addressed, and predefined upper and lower safety limits can be monitored rapidly, thereby enhancing overall management efficiency.
Introduction to Active Alarm Applica
-
Alarm Push Notification Application

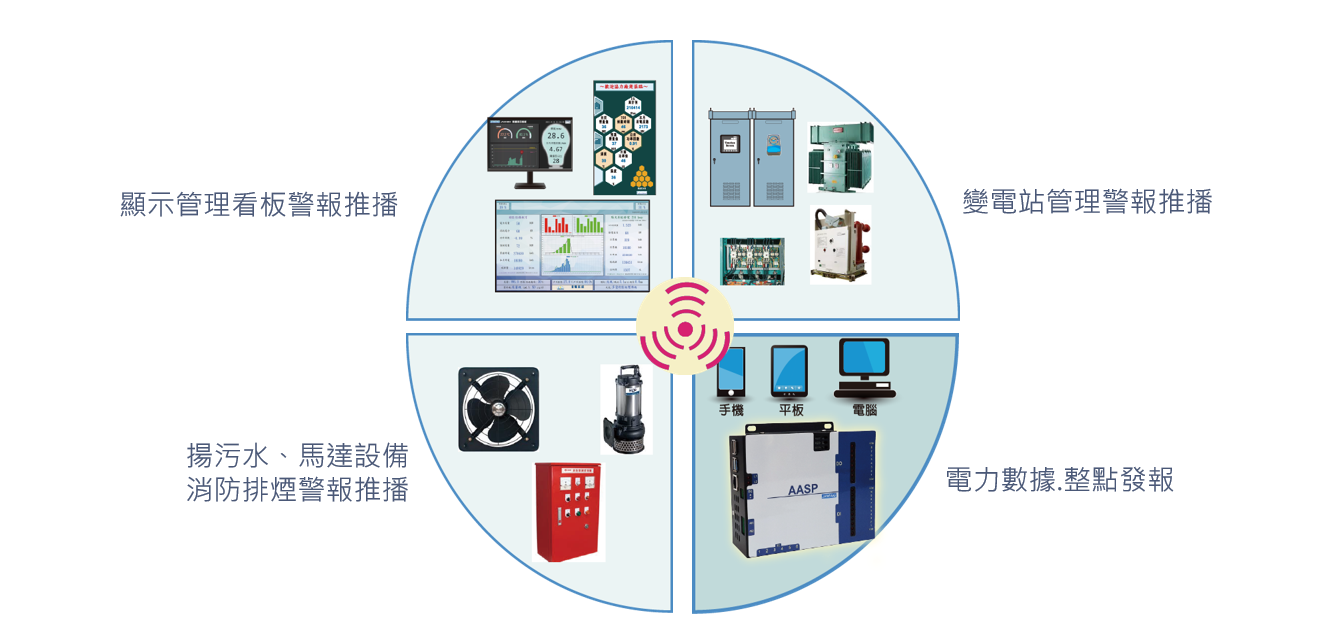

Safety issues can all be included in alarm push notifications, such as: sewage system overflow, fire alarm system alerts, abnormal high temperatures in substations, and unauthorized intrusions.
-
Alarm Dispatch Introduction

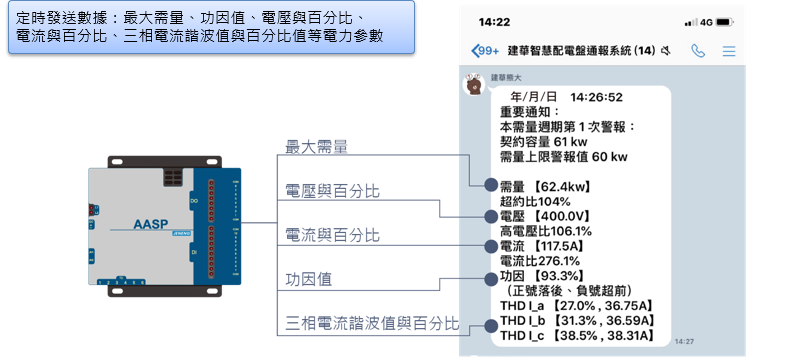

Regularly sending data includes electrical parameters such as maximum demand, power factor, voltage and percentage, current and percentage, as well as harmonic values and percentage for three-phase currents. -
Alarm Dispatch Interface Introduction

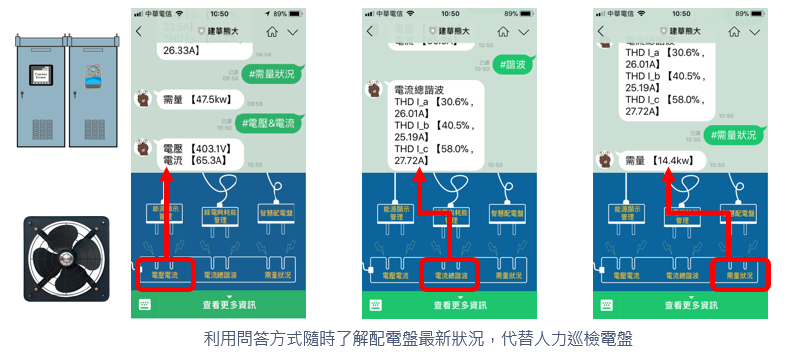

Utilizing a Q&A format to instantly understand the latest status of the distribution panel, replacing manual inspections of the panel.
Alarm Dispatch Architecture Explanation

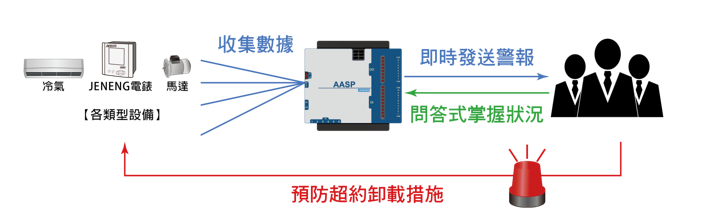

Integrating a group management mechanism, we have introduced interactive functionalities that allow real-time monitoring of distribution panel parameters via mobile devices. Through a Q&A format, users can instantly grasp the latest status of the distribution panel, replacing traditional manual inspections. Once power demand exceeds standards, the system promptly notifies the relevant groups, enabling managers to swiftly implement preventive measures to avoid fines due to overages. This comprehensive system not only enhances management efficiency but also ensures the stability and compliance of electrical usage.
"
Our distribution panels are customized products. If you have any requirements, please feel free to contact us anytime.
We are committed to providing the highest quality service to meet your specific needs."
Introduction to High Voltage Distribution Panels
High voltage distribution panels are typically custom-designed based on single-line diagrams provided by clients, meticulously crafted by engineers. Our company follows the engineer's design to ensure the panel meets all client specifications.
This involves the appropriate configuration of electrical components and structures that comply with safety standards. Throughout the production of high voltage distribution panels, we meticulously adhere to the engineer's drawings, ensuring every detail meets design requirements, thereby providing a reliable and safe power distribution system.
Below are common types of high voltage distribution panels:
This involves the appropriate configuration of electrical components and structures that comply with safety standards. Throughout the production of high voltage distribution panels, we meticulously adhere to the engineer's drawings, ensuring every detail meets design requirements, thereby providing a reliable and safe power distribution system.
Below are common types of high voltage distribution panels:

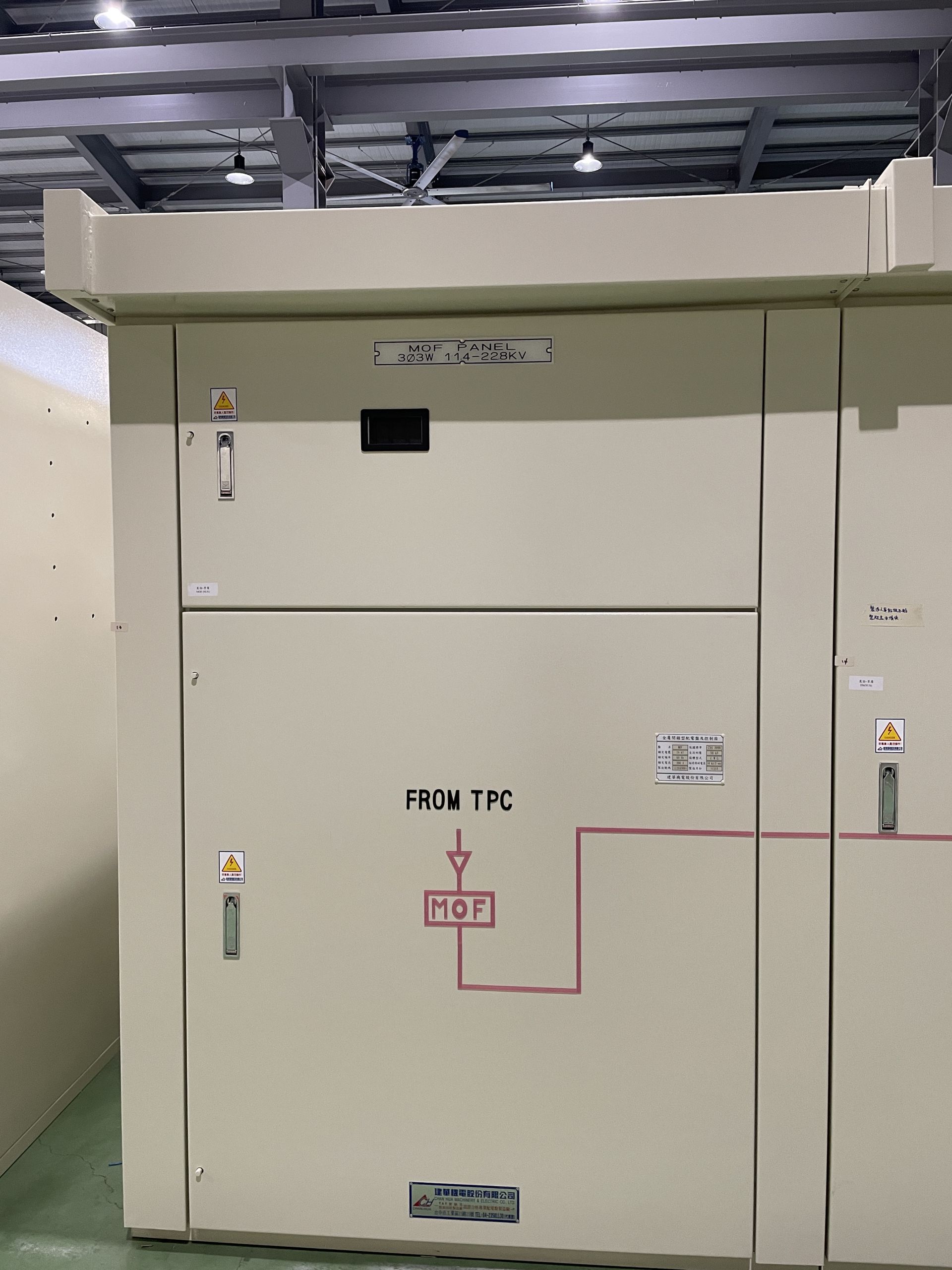

Taiwan Power Company High Voltage Metering and Outfitting (MOF PANEL)
The MOF PANEL is provided to Taiwan Power Company for the installation of electric meters, CTs (current transformers), and PTs (potential transformers). It is an indispensable component in the power system's generation, transmission, and distribution processes.
配壓配電盤種類
-

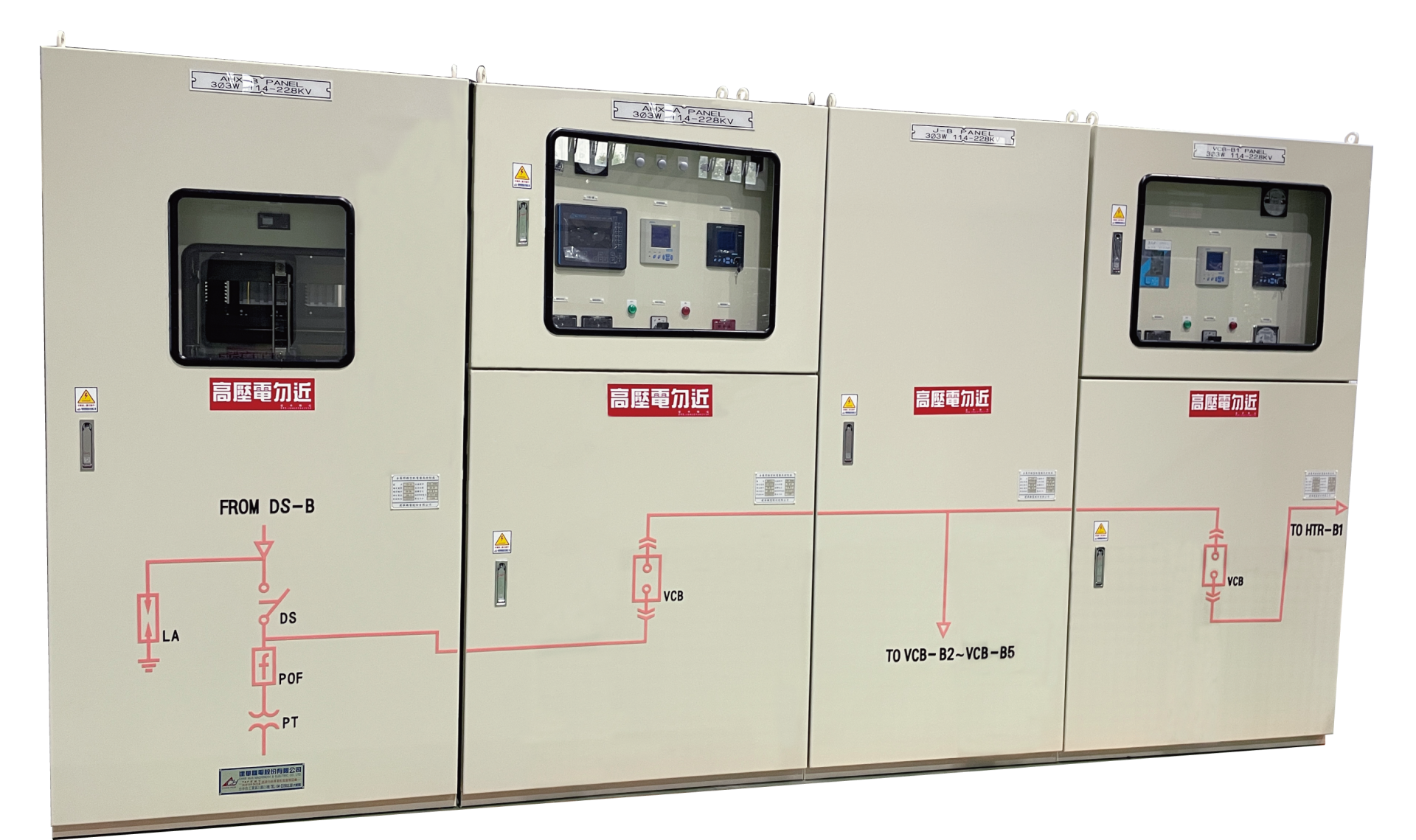

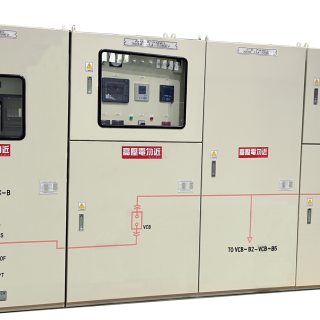

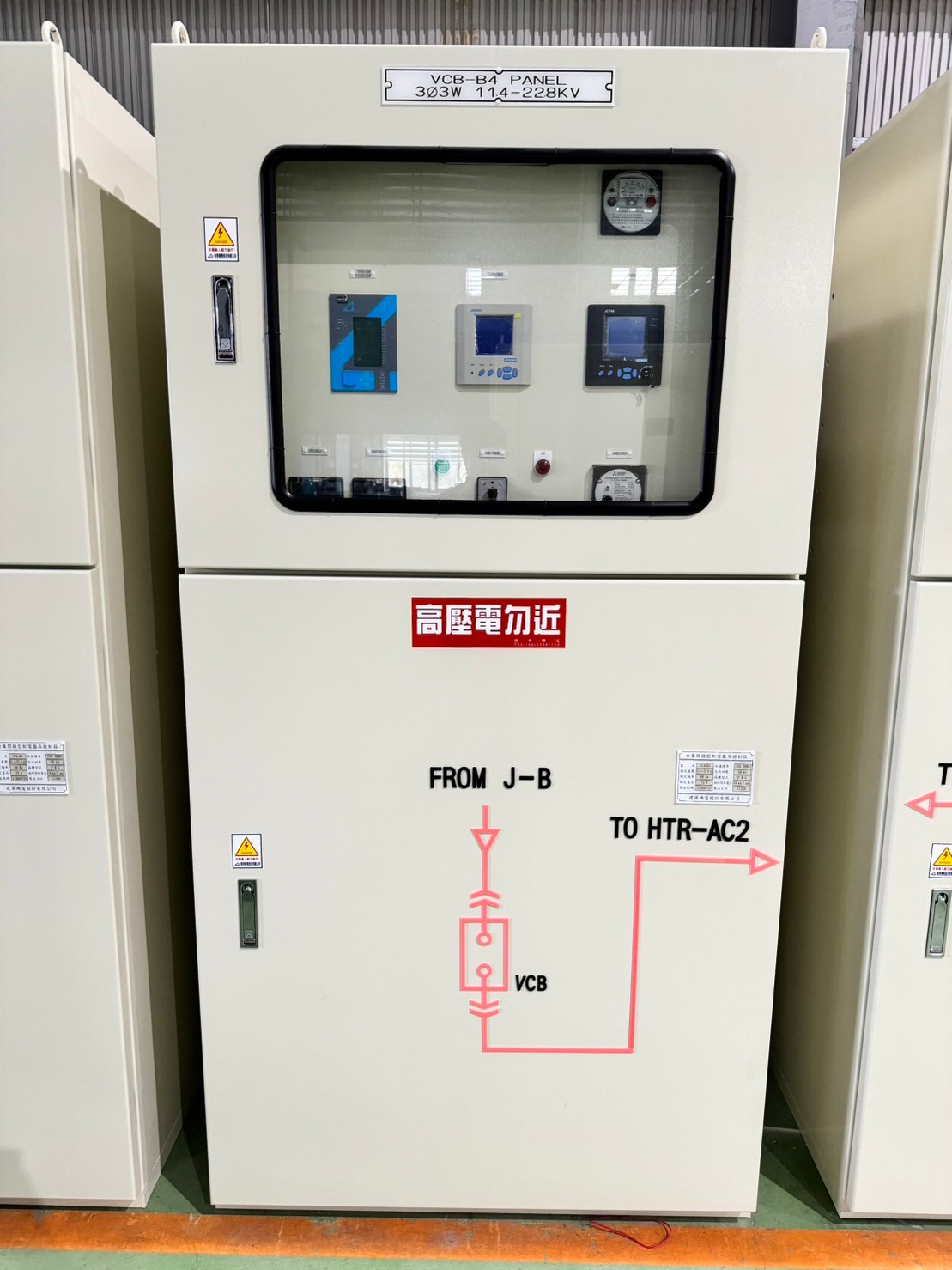

High Voltage Circuit Breaker Panel (VCB PANEL)The High Voltage Circuit Breaker Panel (VCB PANEL) consists primarily of vacuum circuit breakers (VCB), multifunction meters, automatic reclosers, voltage protection relays, and current protection relays. Its main functions include opening or closing various high-voltage circuits and monitoring current electricity usage. In case of abnormal electricity usage, it provides instantaneous disconnection, and during normal operation, it enables automatic reclosing.
-
Load Break Switch and Disconnector Switch Panel (LBS&DS PANEL)

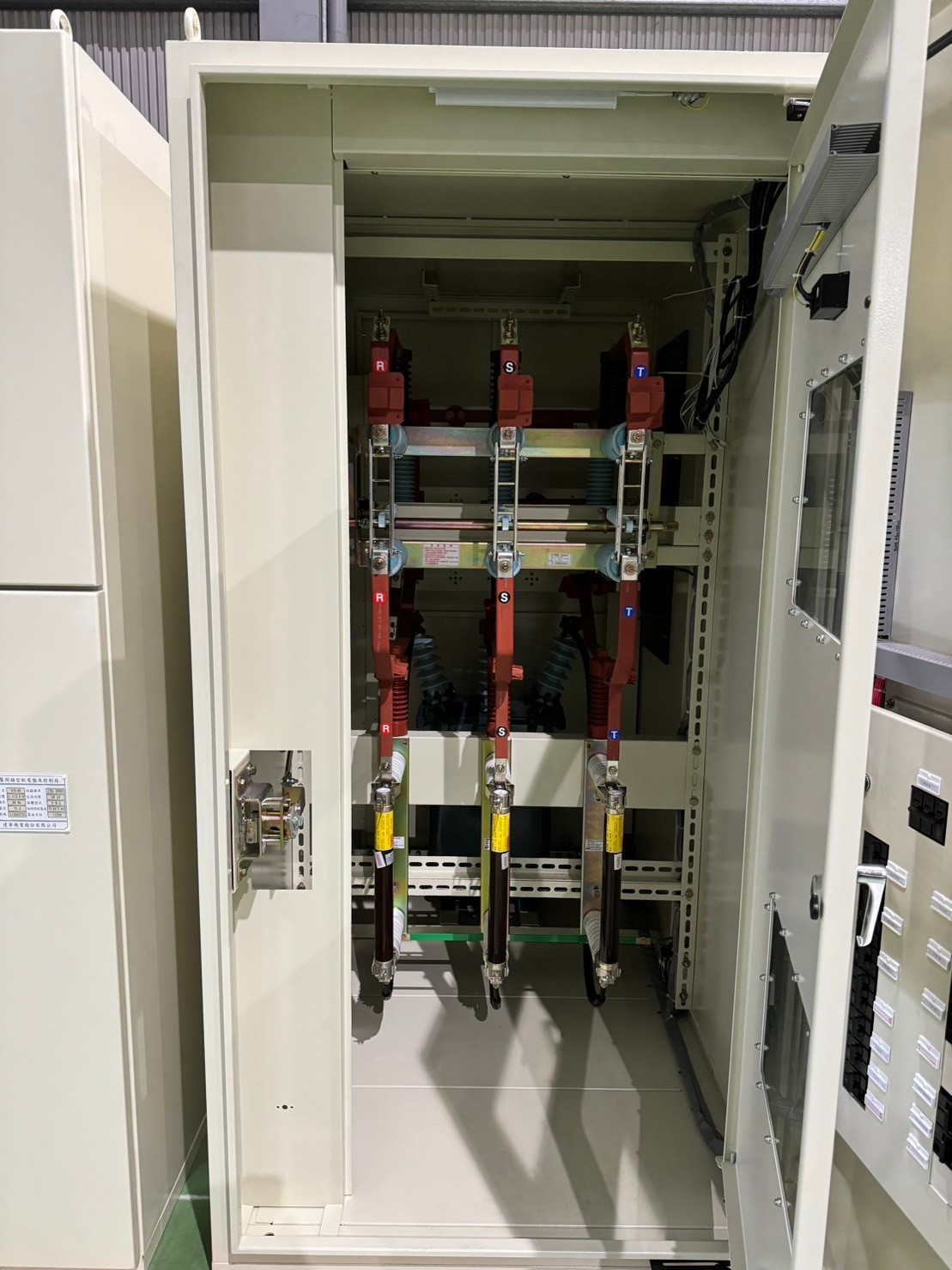

The Load Break Switch and Disconnector Switch Panel (LBS&DS PANEL) consists primarily of a high-voltage load break switch (LBS) or disconnector switch (DS). Its main function is to isolate the incoming power supply from the Taiwan Power Company (TaiPower) to the system substation. In the event of a fault in the supply system, it swiftly disconnects the fault current to prevent the escalation of accidents. -
Potential Transformer Panel (PT PANEL)
The PT Panel is an integral part of distribution panels, housing potential transformers (PT) used primarily to step down high voltage to a safe measurement voltage. Its main functions include voltage measurement and protection to ensure the stable operation of the distribution system. Typically, the PT Panel is also equipped with disconnector switches (DS) and power fuses (POF) to further enhance system safety and performance. Through the combination of these components, the PT Panel ensures the accuracy of power distribution and takes immediate action to prevent system failures.
